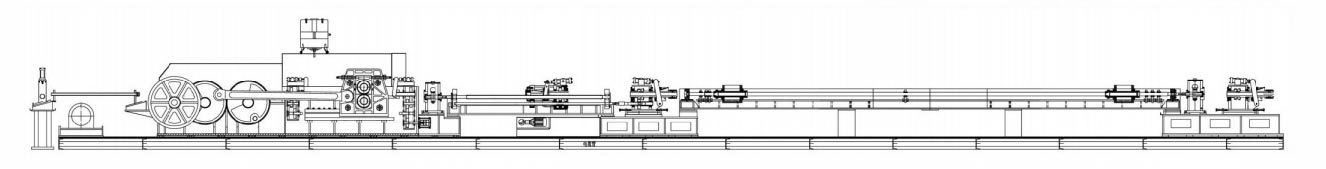

LG30-HLS Cold rolling pipe mill

Classification :

Type: Manual/Automatic/Fully Automatic
OD range: 16-38mm
Raw material:Steel, stainless steel, copper, nickel, alloys, etc
Speed: Medium/High

E-mail: fiona@lchhsteel.com

Whatsapp: +86-18865213557

Product Parameters

Customized for the feature of continuous and fast feeding of short bilets,this non-stop continuous feeding cold roling tube machine is available.This cold-rolled pipe mill s highly favored by high-volume customer groups.

Number	entry name		unit	Value
1	Tube blank	Outer diameter	mm	φ28~φ48 φ28-φ48
2		Wall thickness	mm	2-5 2-5
3		Length	mm	6000 6000
4		Outer dlametertolerance	mm	≤±0.5 s±0.5
5		Wall hickness tolerance	mm	≤±0.3 ≤±0.3
6		Curvature	mm/m	s3(full length bending ≤15mm)
7	Finished product pipe	external diameter	mm	φ16~φ38 中 1 6 - φ 3 8
8		wall hickness	mm	1-4 1-4
9		Outer diameter tolerance	mm	≤±0.05 s±0.05
10		Wall thickness tolerance	mm	≤±0.05 s±0.05
11	Feed volume		mm / 次	Steplessadjustable
12	Rotation mode			servo motor
13	Delivery method			Single rotation singlefeed,doublerotation double feed
14	Loading fom			Automatc rear loading
15	Racktravel speed		次/分	0-140 0-140
16	Rack stroke length		mm	642 642
17	Crank radius		mm	320 320
18	Main motor(permanent magnetmotor)		KW	55 55
19	Roll diameter			φ250-φ258 中250-中258
