Oil Immersed Amorphous Alloy

Classification :

Amorphous alloy is a new type of magnetic conducting material, which is mainly composed of iron, silicon and boron. The metal atoms of amorphous alloy are arranged in disordered amorphous state by rapid freezing and solidification process. It has the characteristics of good ferromagnetism, high mechanical properties, good corrosion resistance, simple manufacturing process and high yield. There are significant differences in physical properties, chemical properties and mechanical properties between amorphous alloys and crystalline alloys. Compared with the traditional silicon steel core, the transformer core made of amorphous alloy is more favorable for magnetization and demagnetization, and the no-load loss is reduced by 80%.

E-mail: fiona@lchhsteel.com

Whatsapp: +86-18865213557

Product Details

Scope of Application

Amorphous alloy transformer has obvious advantages of environmental protection and energy saving, which conforms to the development trend of energy saving requirements. The promotion and application of this product will bring very good economic and social benefits, and has a broad market prospect.
Products will be widely used in various types of residential, commercial buildings, public facilities, absenteeism enterprises, power generation enterprises and urban and rural power grids.

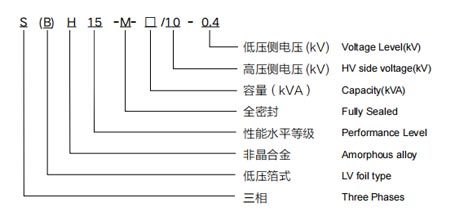

Product Model

Technical Parameter

Technical parameters of S (B) H15-M three-phase full seal non excitation voltage regulating distribution transformer

Rated capacity(kVA)	Voltage Combination			Connection Symbol	No-Load Loss (W)	Load Loss (W)75℃	No-Load Current (%)	Short Circuit Impedance (%)
Rated capacity(kVA)	High Voltage (kV)	High Voltage Tapping Range(%)	Low Voltage (kV)	Connection Symbol	No-Load Loss (W)	Load Loss (W)75℃	No-Load Current (%)	Short Circuit Impedance (%)
30	6 6.3 10 10.5 11	±5 ±2×2.5	0.4	Dyn11	30	630	1.7	4
50					40	910	1.3
80					60	1310	1.1
100					80	1580	1.0
125					90	1890	0.9
160					100	2310	0.7
200					120	2730	0.7
250					140	3200	0.7
315					170	3830	0.5
400					200	4540	0.5
500					240	5410	0.5
630					320	6200	0.3	4.5
800					380	7500	0.3
1000					450	10300	0.3
1250					530	12000	0.2
1600					630	14500	0.2
2000					750	18300	0.2	5.0
2500					900	21200	0.2	5.0
